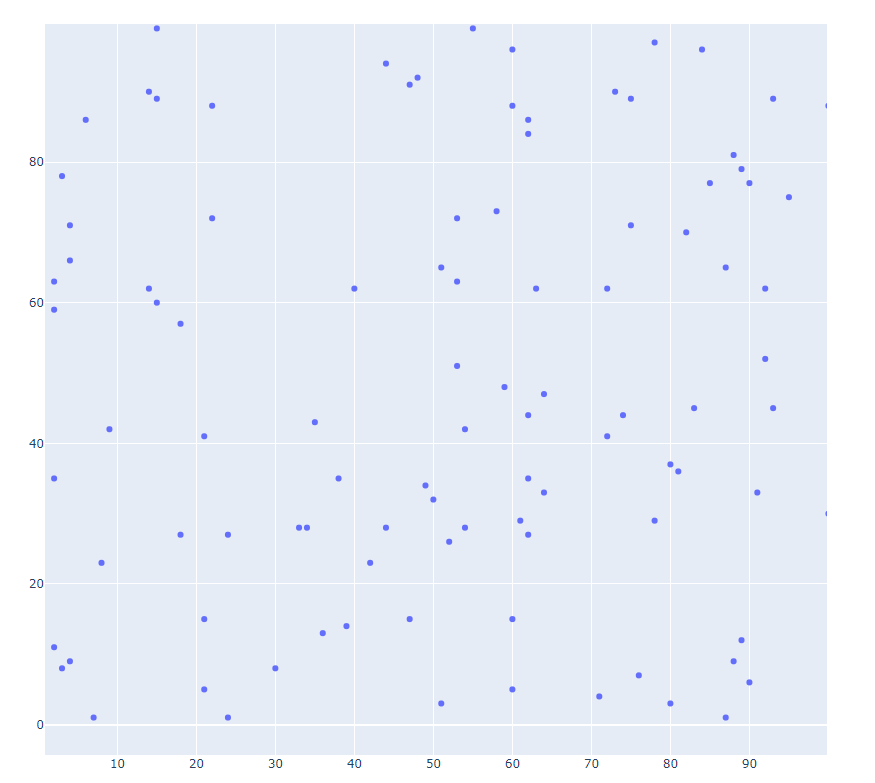

# This plots 100 random data points (set the seed to 42 to
# obtain the same points we do!) between 1 and 100 in both
# vertical and horizontal directions.
######
import plotly.offline as pyo
import plotly.graph_objs as go
import numpy as np
np.random.seed(42)
random_x = np.random.randint(1,101,100)
random_y = np.random.randint(1,101,100)
data = [go.Scatter(
x = random_x,
y = random_y,
mode = 'markers',
)]
pyo.plot(data, filename='scatter1.html')

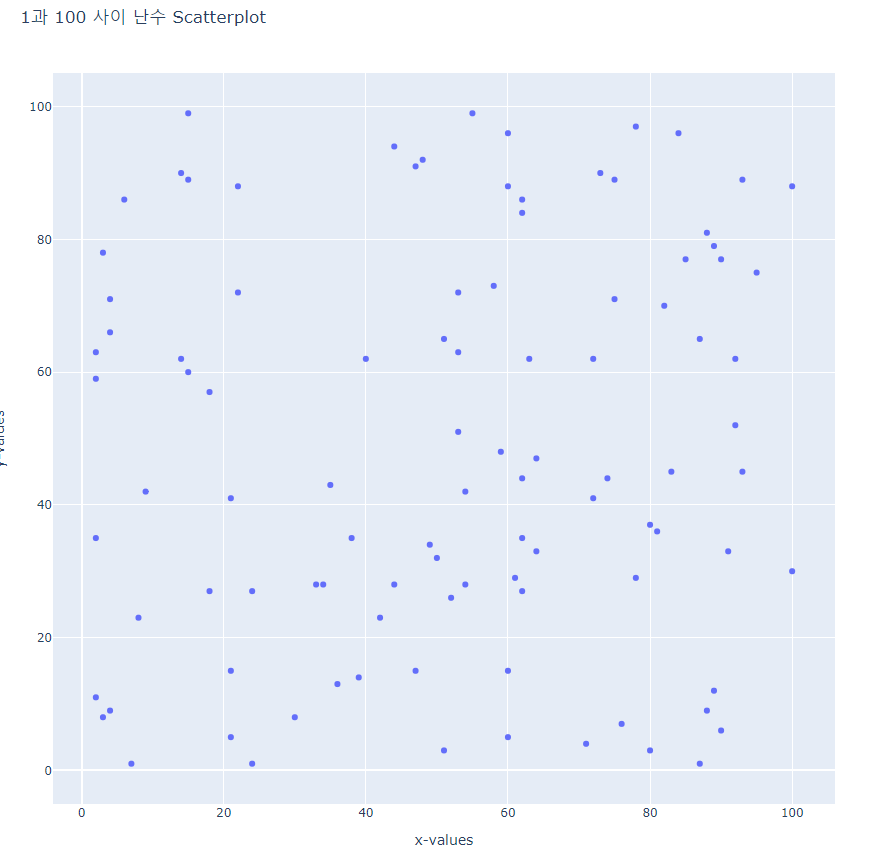

- scatter2.py
#######
# This plots 100 random data points (set the seed to 42 to
# obtain the same points we do!) between 1 and 100 in both
# vertical and horizontal directions.
######
import plotly.offline as pyo
import plotly.graph_objs as go
import numpy as np
np.random.seed(42)
random_x = np.random.randint(1,101,100)
random_y = np.random.randint(1,101,100)
data = [go.Scatter(
x = random_x,
y = random_y,
mode = 'markers',
)]
layout = go.Layout(
title = '1과 100 사이 난수 Scatterplot', # Graph title
xaxis = dict(title = 'x-values'), # x-axis label
yaxis = dict(title = 'y-values'), # y-axis label
hovermode ='x' # handles multiple points landing on the same vertical
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='scatter2.html')

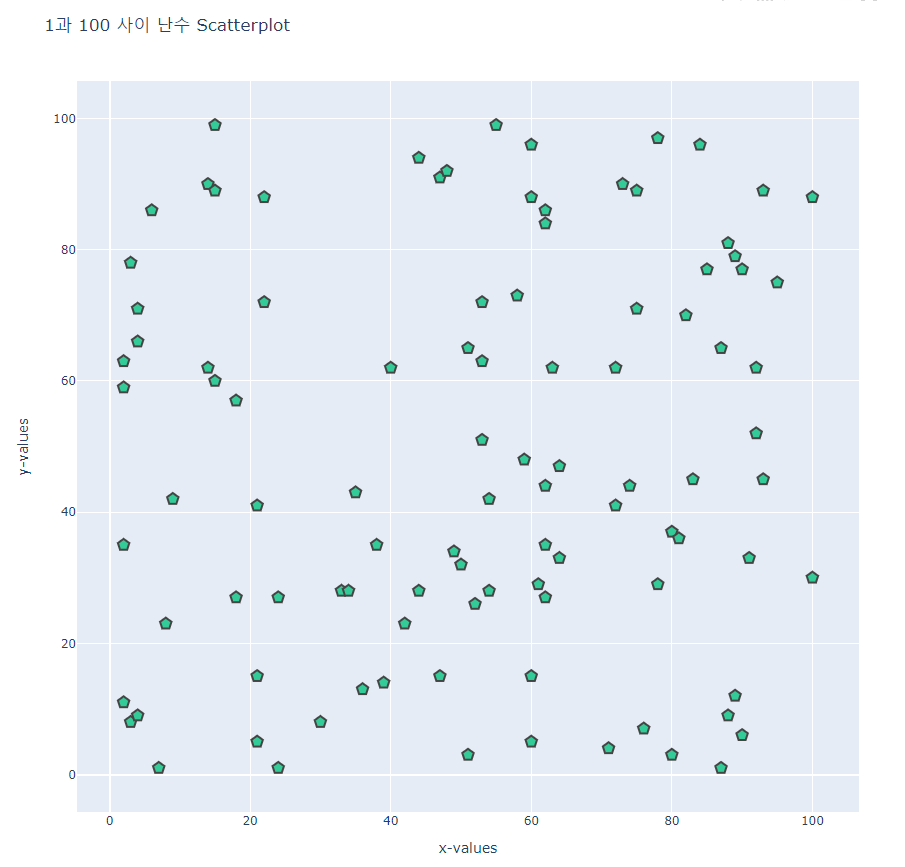

- scatter3.py
#######
# This plots 100 random data points (set the seed to 42 to
# obtain the same points we do!) between 1 and 100 in both
# vertical and horizontal directions.
######
import plotly.offline as pyo
import plotly.graph_objs as go
import numpy as np
np.random.seed(42)
random_x = np.random.randint(1,101,100)
random_y = np.random.randint(1,101,100)
data = [go.Scatter(
x = random_x,
y = random_y,
mode = 'markers',
marker = dict( # change the marker style
size = 12,
color = 'rgb(51,204,153)',
symbol = 'pentagon',
line = dict(
width = 2,
)
)
)]
layout = go.Layout(
title = '1과 100 사이 난수 Scatterplot', # Graph title
xaxis = dict(title = 'x-values'), # x-axis label
yaxis = dict(title = 'y-values'), # y-axis label
hovermode ='closest' # handles multiple points landing on the same vertical
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='scatter3.html')
- line1.py
#######
# This line chart displays the same data
# three different ways along the y-axis.
######
import plotly.offline as pyo
import plotly.graph_objs as go
import numpy as np
np.random.seed(56)
x_values = np.linspace(0, 1, 100) # 100 evenly spaced values
y_values = np.random.randn(100) # 100 random values
# create traces
trace0 = go.Scatter(
x = x_values,
y = y_values+5,
mode = 'markers',
name = 'markers'
)
trace1 = go.Scatter(
x = x_values,
y = y_values,
mode = 'lines+markers',
name = 'lines+markers'
)
trace2 = go.Scatter(
x = x_values,
y = y_values-5,
mode = 'lines',
name = 'lines'
)
data = [trace0, trace1, trace2] # assign traces to data
layout = go.Layout(
title = 'Line chart showing three different modes'
)
fig = go.Figure(data=data,layout=layout)
pyo.plot(fig, filename='line1.html')
linespace(0, 1, 100) # 0과 1사이를 100개의 구간으로

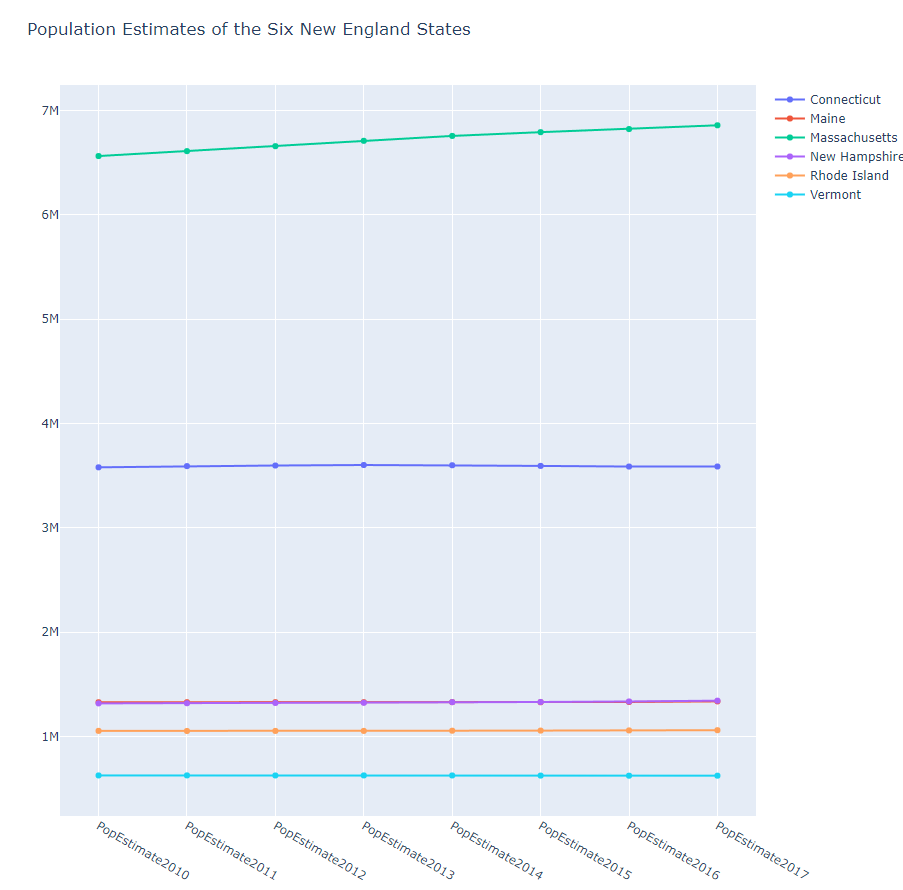

- line2.py
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
# read a .csv file into a pandas DataFrame:
df = pd.read_csv(r'population.csv', index_col=0)
# create traces
traces = [go.Scatter(
x = df.columns,
y = df.loc[name],
mode = 'markers+lines',
name = name
) for name in df.index]
layout = go.Layout(
title = 'Population Estimates of the Six New England States'
)
fig = go.Figure(data=traces,layout=layout)
pyo.plot(fig, filename='line2.html')
- line3.py
#######
# This line chart shows U.S. Census Bureau
# population data from six New England states.
# THIS PLOT USES PANDAS TO EXTRACT DESIRED DATA FROM THE SOURCE
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv('nst-est2017-alldata.csv')
# Alternatively:
# df = pd.read_csv('https://www2.census.gov/programs-surveys/popest/datasets/2010-2017/national/totals/nst-est2017-alldata.csv')
# grab just the six New England states:
df2 = df[df['DIVISION']=='1']
# set the index to state name:
df2.set_index('NAME', inplace=True)
# grab just the population columns:
df2 = df2[[col for col in df2.columns if col.startswith('POP')]]
traces=[go.Scatter(
x = df2.columns,
y = df2.loc[name],
mode = 'markers+lines',
name = name
) for name in df2.index]
layout = go.Layout(
title = 'Population Estimates of the Six New England States'
)
fig = go.Figure(data=traces,layout=layout)
pyo.plot(fig, filename='line3.html')

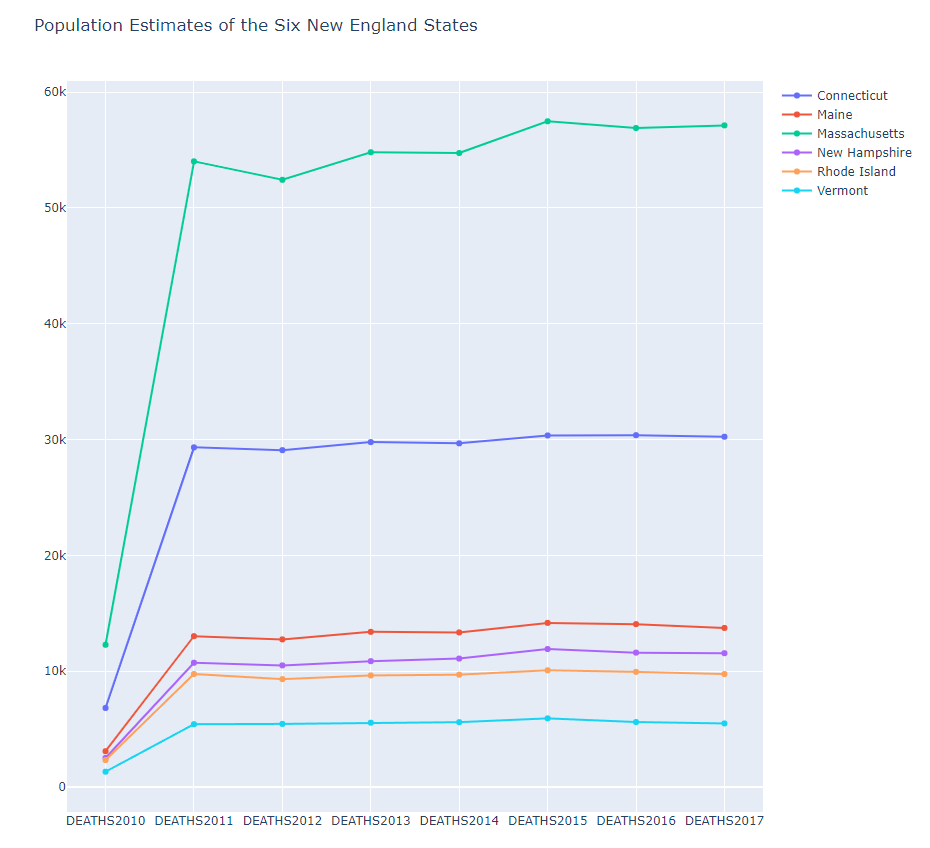

pop -> DEATH 로

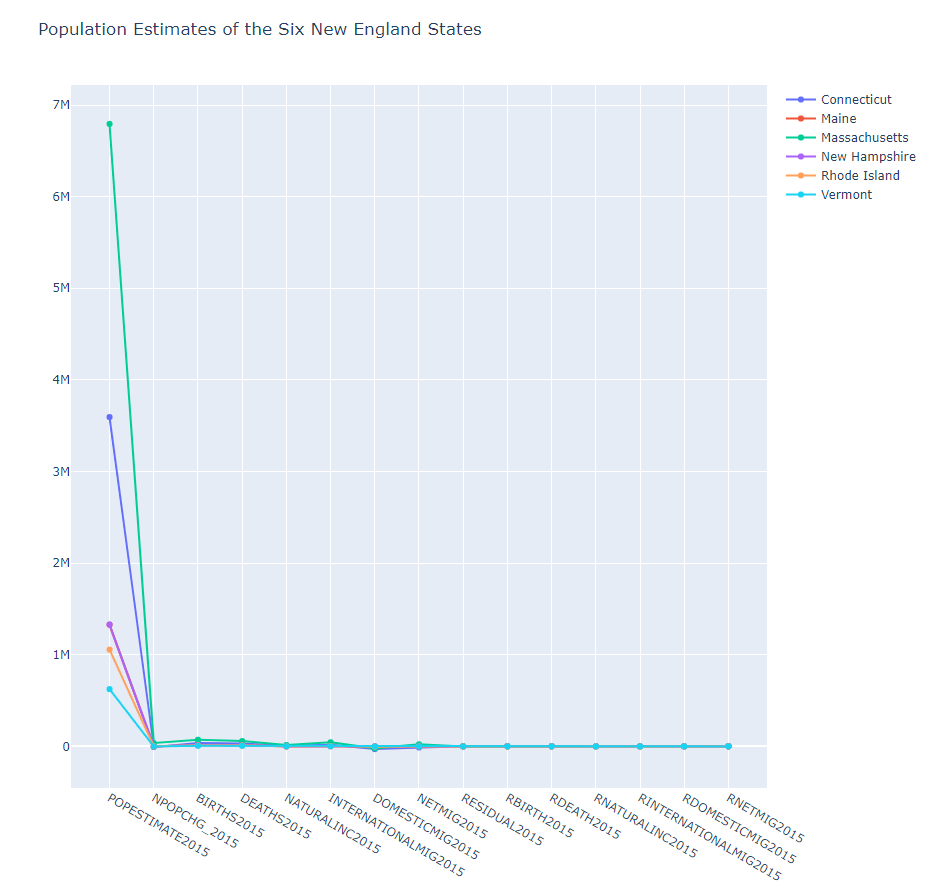

2015년도 자료만
if col.endswith('2015')

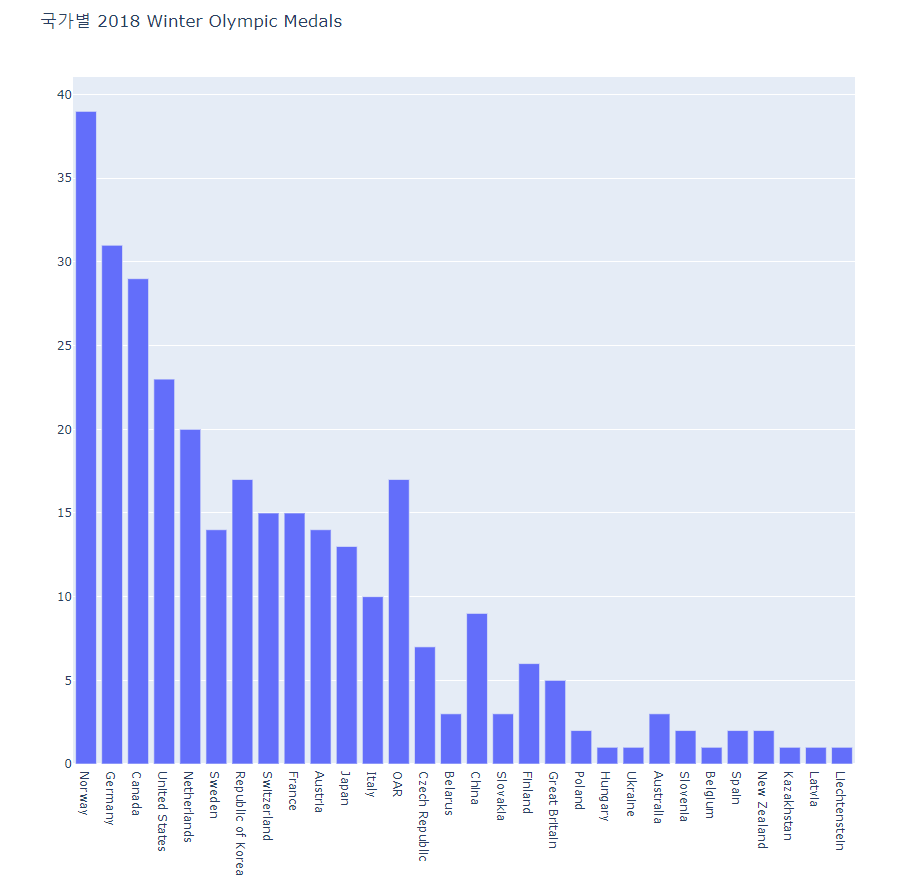

- bar1.py
#######
# A basic bar chart showing the total number of
# 2018 Winter Olympics Medals won by Country.
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv(r'2018WinterOlympics.csv')
data = [go.Bar(
x=df['NOC'], # NOC stands for National Olympic Committee
y=df['Total']
)]
layout = go.Layout(
title='국가별 2018 Winter Olympic Medals'
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='bar1.html')

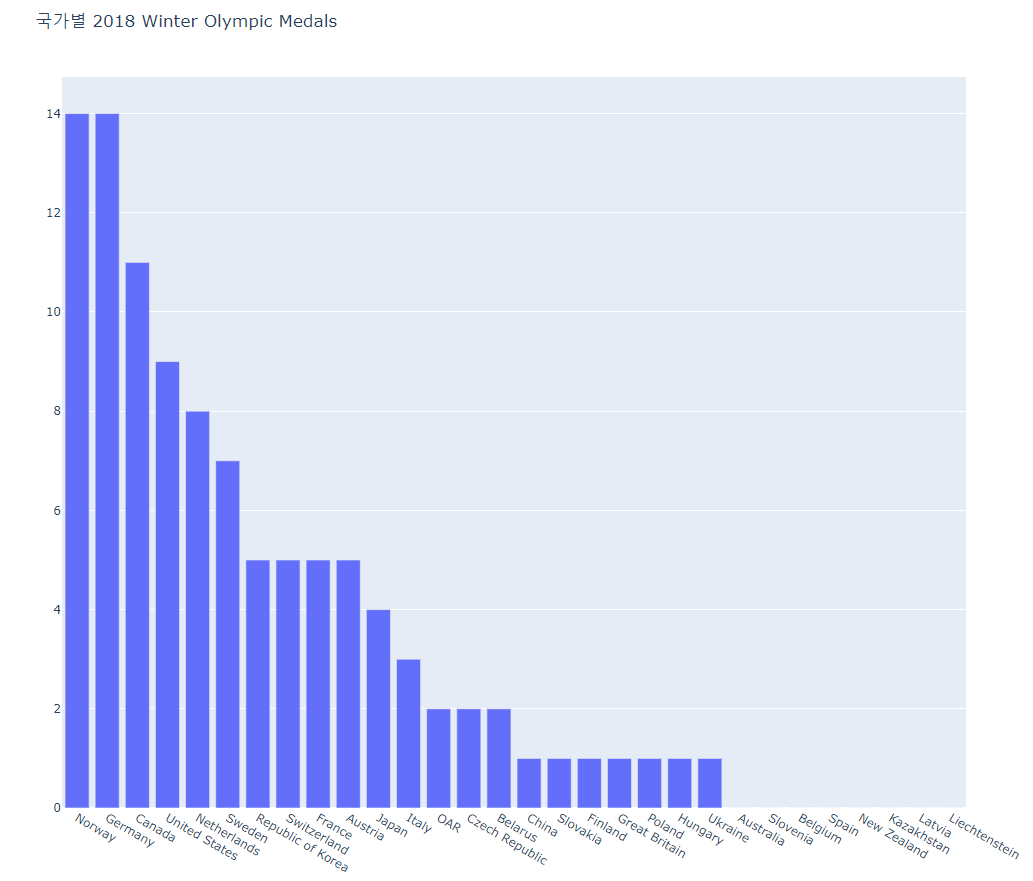

금메달만 Total -> Gold

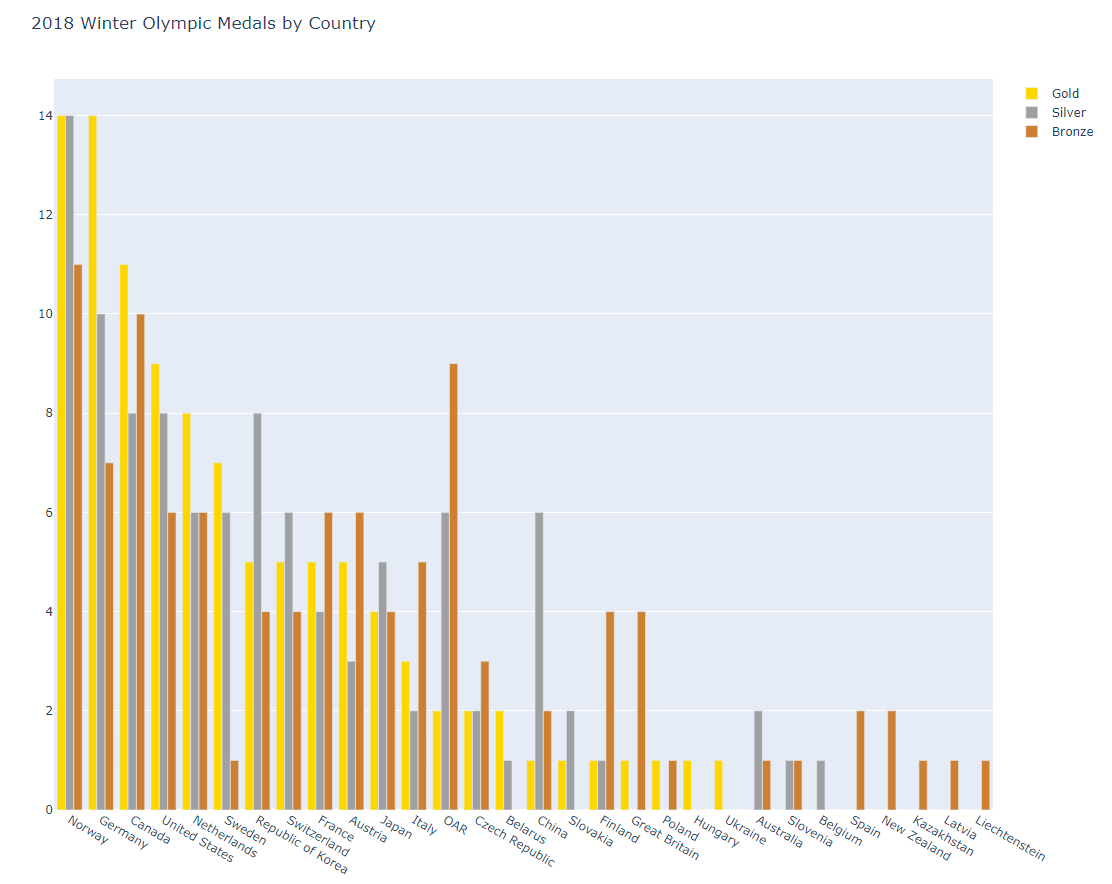

- bar2.py
#######
# This is a grouped bar chart showing three traces
# (gold, silver and bronze medals won) for each country
# that competed in the 2018 Winter Olympics.
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv(r'2018WinterOlympics.csv')
trace1 = go.Bar(
x=df['NOC'], # NOC stands for National Olympic Committee
y=df['Gold'],
name = 'Gold',
marker=dict(color='#FFD700') # set the marker color to gold
)
trace2 = go.Bar(
x=df['NOC'],
y=df['Silver'],
name='Silver',
marker=dict(color='#9EA0A1') # set the marker color to silver
)
trace3 = go.Bar(
x=df['NOC'],
y=df['Bronze'],
name='Bronze',
marker=dict(color='#CD7F32') # set the marker color to bronze
)
data = [trace1, trace2, trace3]
layout = go.Layout(
title='2018 Winter Olympic Medals by Country',
barmode='stack'
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='bar2.html')
barmode = 'stack' 스택형으로 메달 개수 시각화
barmode 주석 처리 시

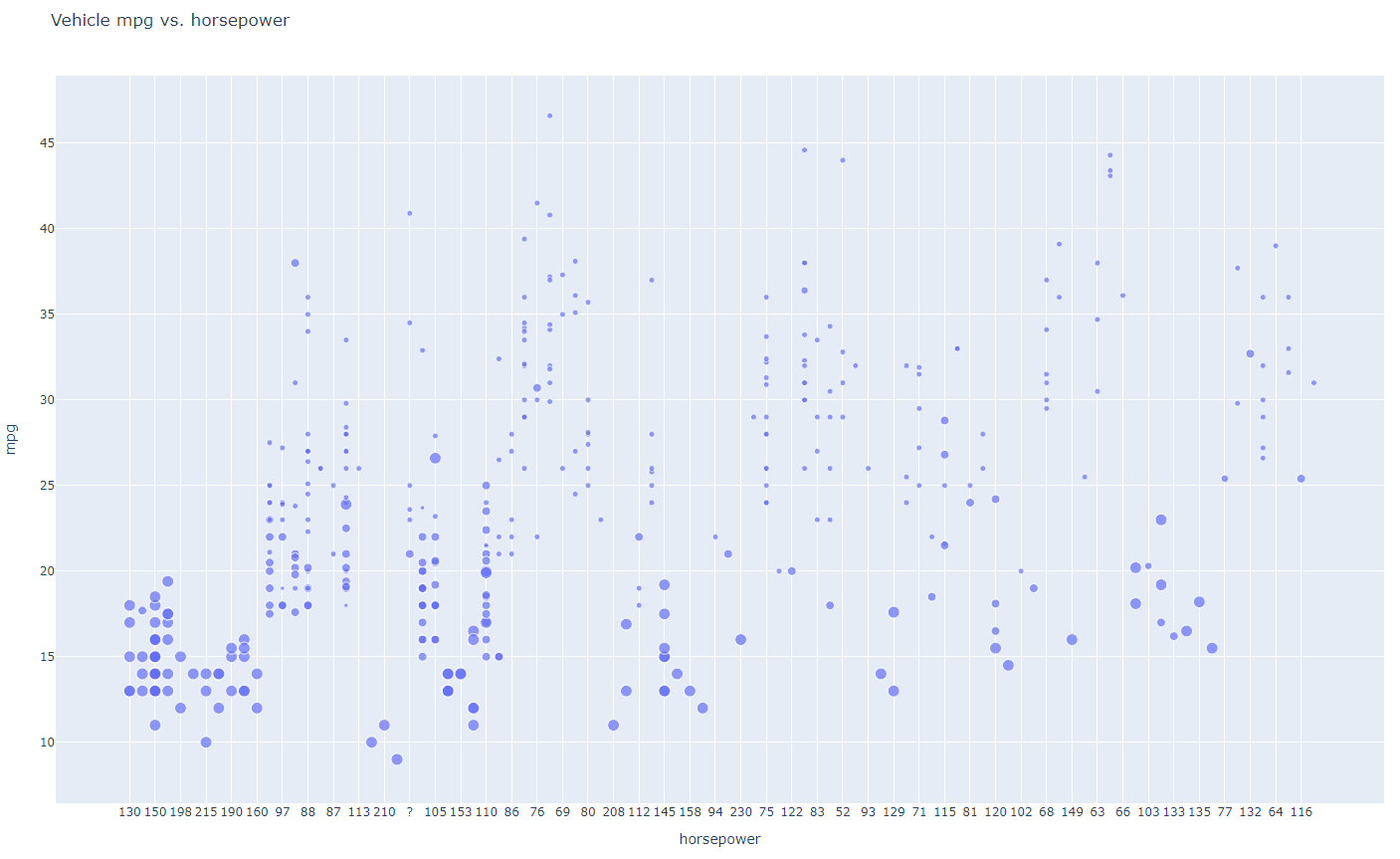

- bubble1.py
#######
# A bubble chart is simply a scatter plot
# with the added feature that the size of the
# marker can be set by the data.
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv(r'mpg.csv')
data = [go.Scatter( # start with a normal scatter plot
x=df['horsepower'],
y=df['mpg'],
text=df['name'],
mode='markers',
marker=dict(size=1.5*df['cylinders']) # set the marker size
)]
layout = go.Layout(
title='Vehicle mpg vs. horsepower',
xaxis = dict(title = 'horsepower'), # x-axis label
yaxis = dict(title = 'mpg'), # y-axis label
hovermode='closest'
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='bubble1.html')
mpg = 연비
원이 크면 클수록 cylinders 수가 큼
연비가 낮을 때 주로 원의 크기가 큼 -> cylinders 수가 큼

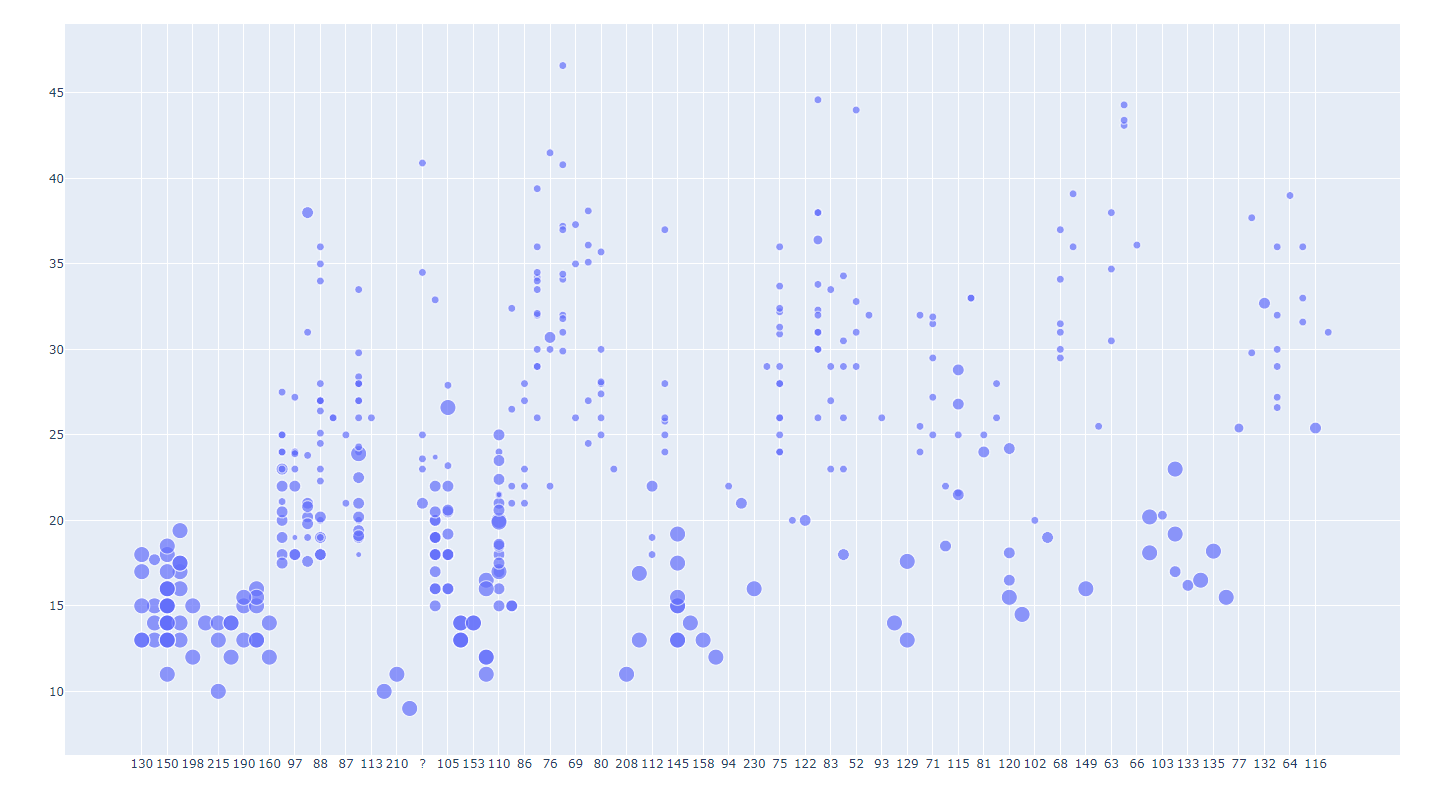

원의 크기 = weight를 기준으로
marker=dict(size=0.005*df['weight'])
- bubble2.py
#######
# A bubble chart is simply a scatter plot
# with the added feature that the size of the
# marker can be set by the data.
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv(r'mpg.csv')
# Add columns to the DataFrame to convert model year to a string and
# then combine it with name so that hover text shows both:
df['text1']=pd.Series(df['model_year'],dtype=str)
df['text2']="'"+df['text1']+" "+df['name']
data = [go.Scatter(
x=df['horsepower'],
y=df['mpg'],
text=df['text2'], # use the new column for the hover text
mode='markers',
marker=dict(size=2*df['cylinders'])
)]
layout = go.Layout(
title='Vehicle mpg vs. horsepower',
hovermode='closest'
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='bubble2.html')

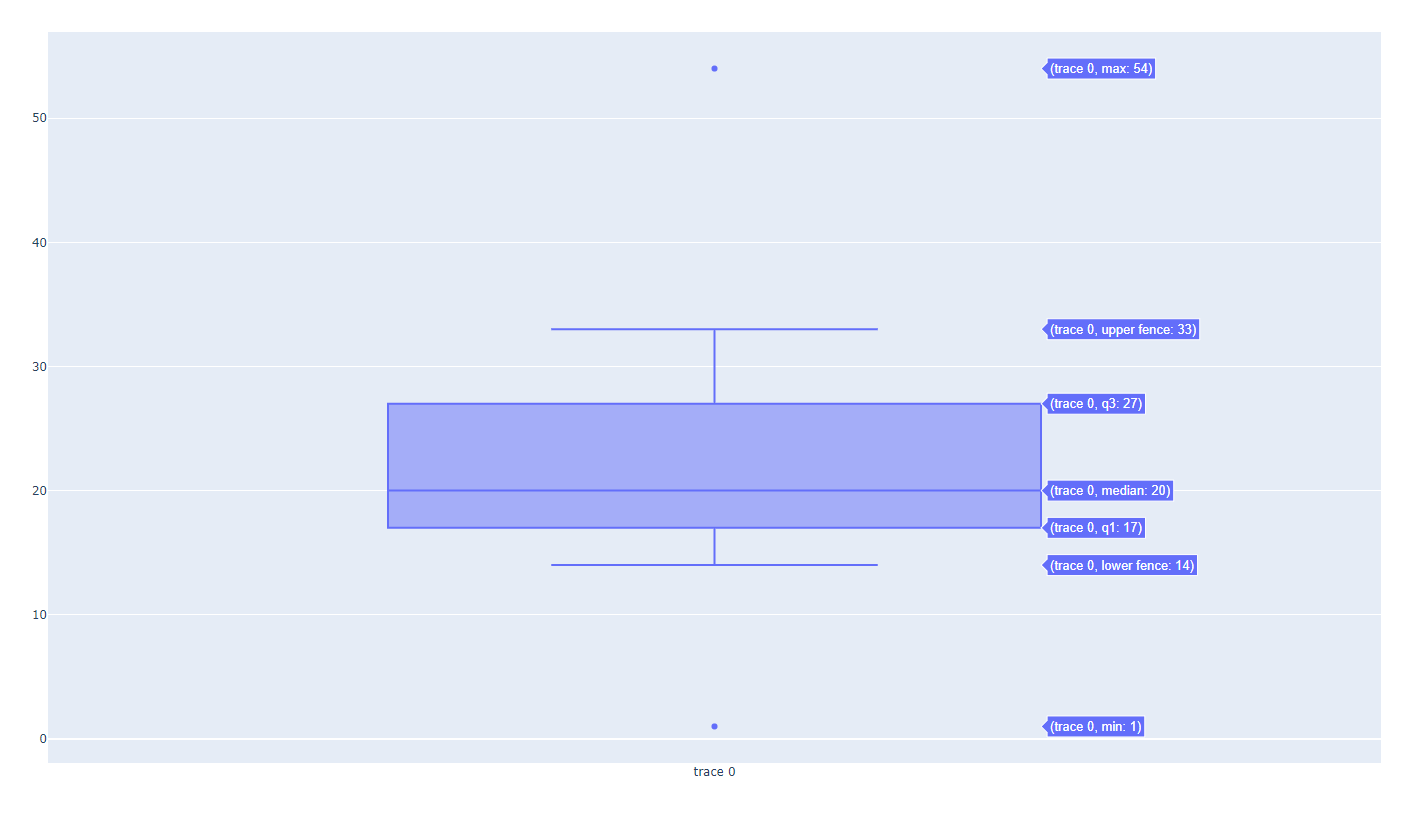

- box1.py
#######
# This simple box plot places the box beside
# the original data points on the same graph.
######
import plotly.offline as pyo
import plotly.graph_objs as go
# set up an array of 20 data points, with 20 as the median value
y = [1,14,14,15,16,18,18,19,19,20,20,23,24,26,27,27,28,29,33,54]
data = [
go.Box(
y=y,
boxpoints='outliers', # display the original data points
# offset them to the left of the box
)
]
pyo.plot(data, filename='box1.html')
(median 값 위치를 기준으로), 얇다 = 밀집되어 있다, 두껍다 = 값들이 비교적 떨어져있다
이상치 out lier = 측정이 잘못됐거나, 값이 이상하거나

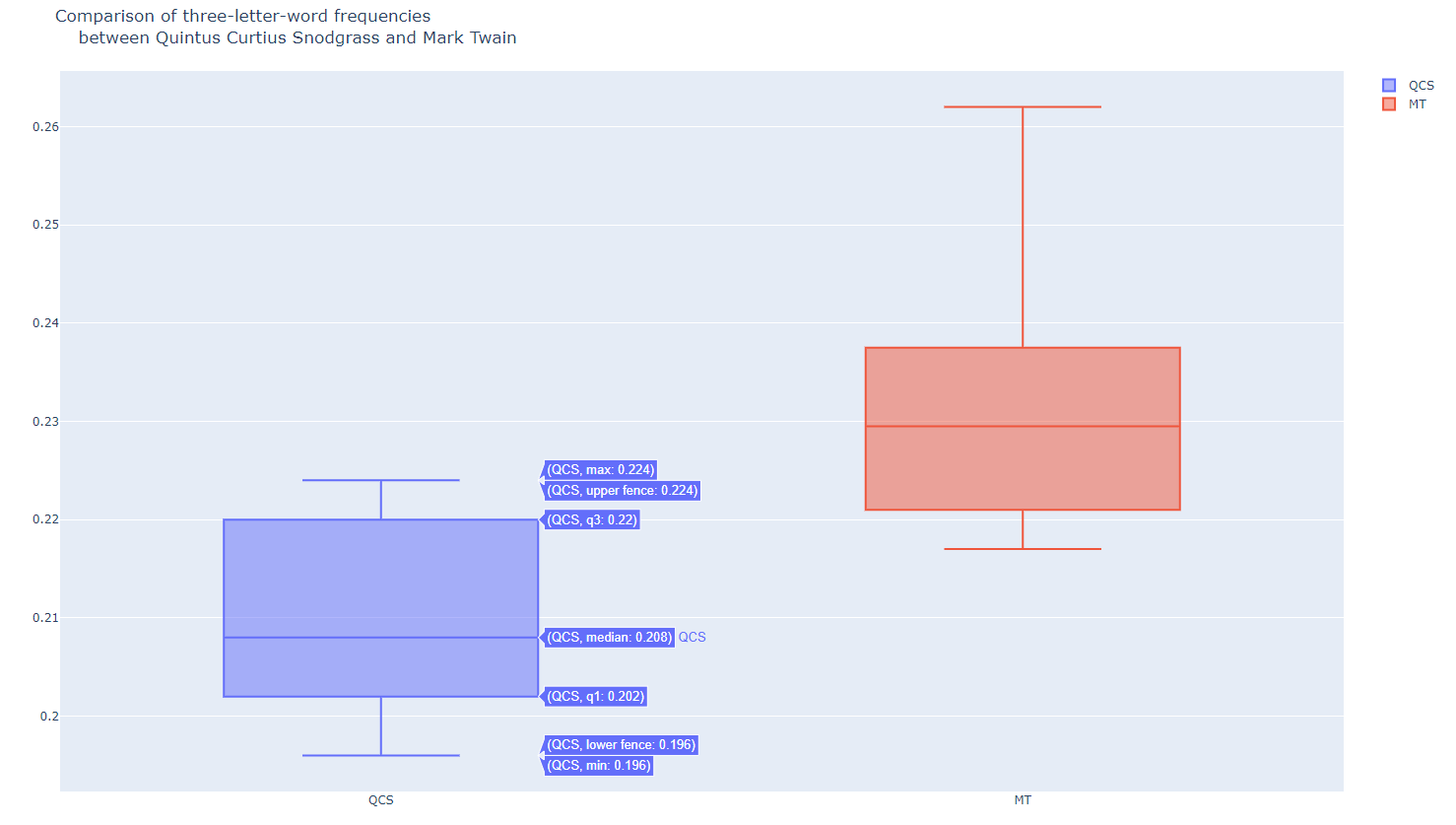

- box3.py
import plotly.offline as pyo
import plotly.graph_objs as go
snodgrass = [.209,.205,.196,.210,.202,.207,.224,.223,.220,.201]
twain = [.225,.262,.217,.240,.230,.229,.235,.217]
data = [
go.Box(
y=snodgrass,
name='QCS'
),
go.Box(
y=twain,
name='MT'
)
]
layout = go.Layout(
title = 'Comparison of three-letter-word frequencies<br>\
between Quintus Curtius Snodgrass and Mark Twain'
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='box3.html')

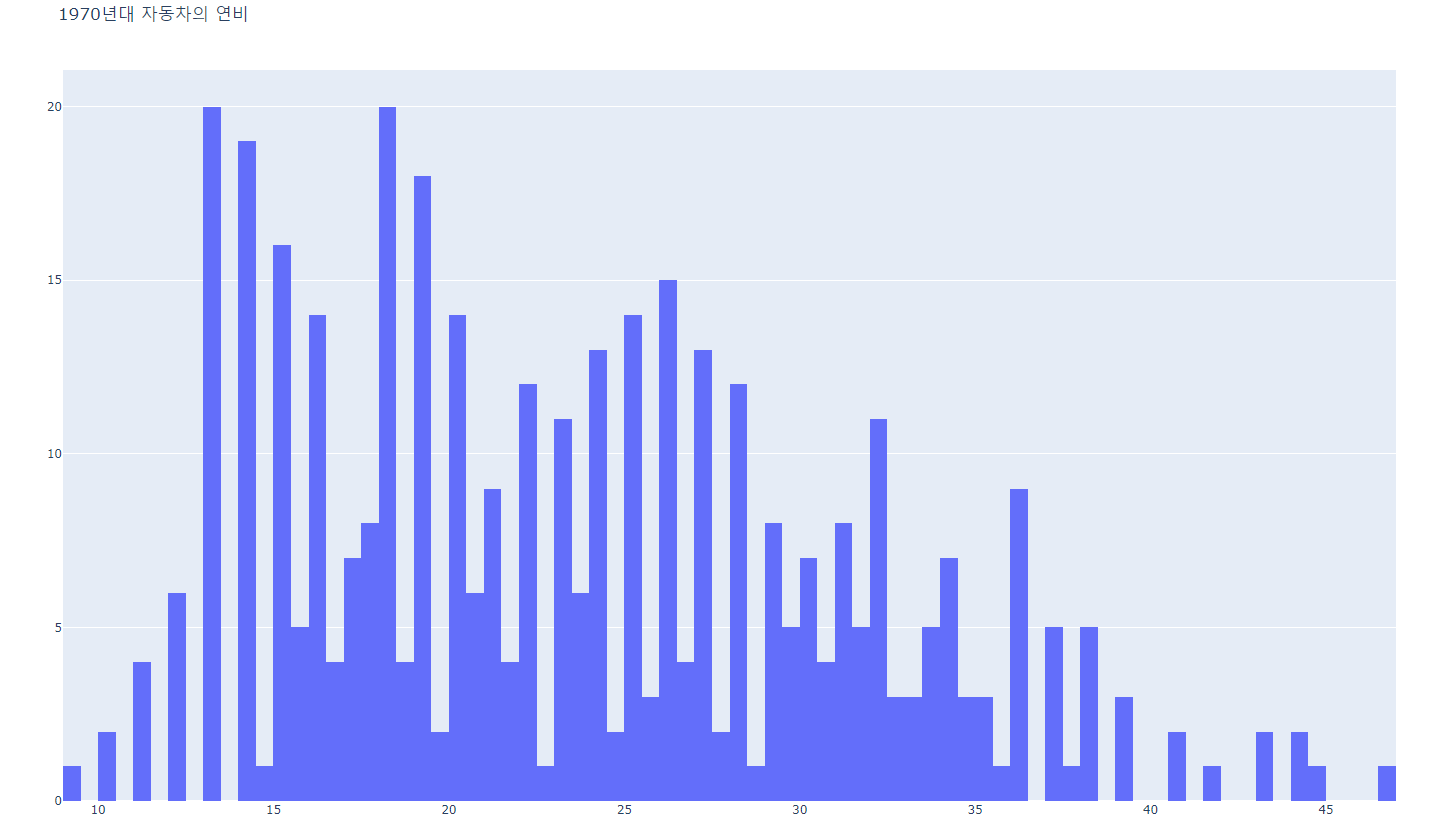

- hist1.py
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv(r'mpg.csv')
data = [go.Histogram(
x=df['mpg'],
xbins=dict(start=8, end=50, size=0.5),
)] # Histogram : continuous data, BarChart : Discrete data
layout = go.Layout(
title="1970년대 자동차의 연비"
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='basic_histogram.html')
bar chart와의 차이?
bar : 명목형, histo : 연속형

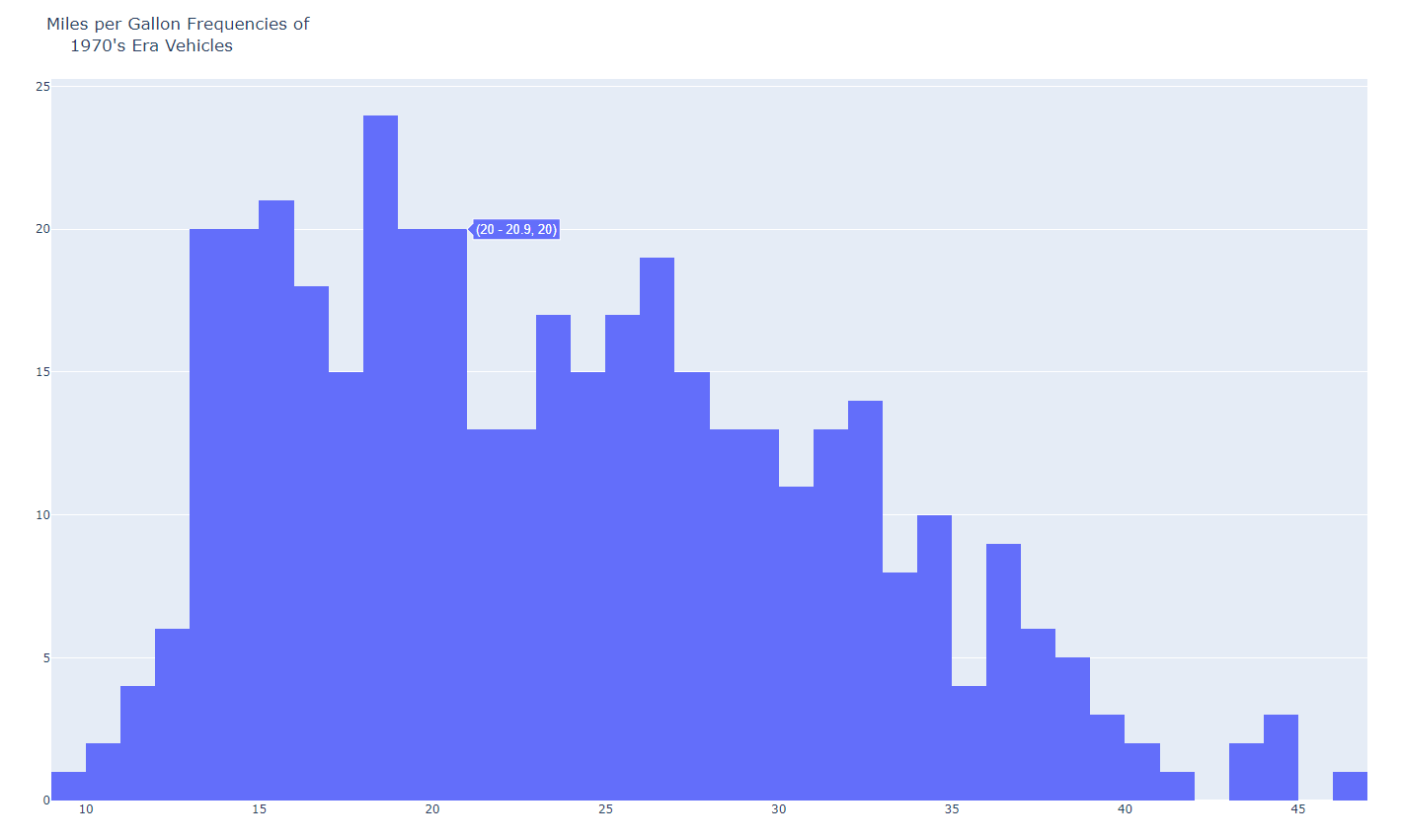

- hist3.py
#######
# This histogram has narrower bins than the previous hist1.py
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv('mpg.csv')
data = [go.Histogram(
x=df['mpg'],
xbins=dict(start=8,end=50,size=1),
)]
layout = go.Layout(
title="Miles per Gallon Frequencies of<br>\
1970's Era Vehicles"
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='narrow_histogram.html')

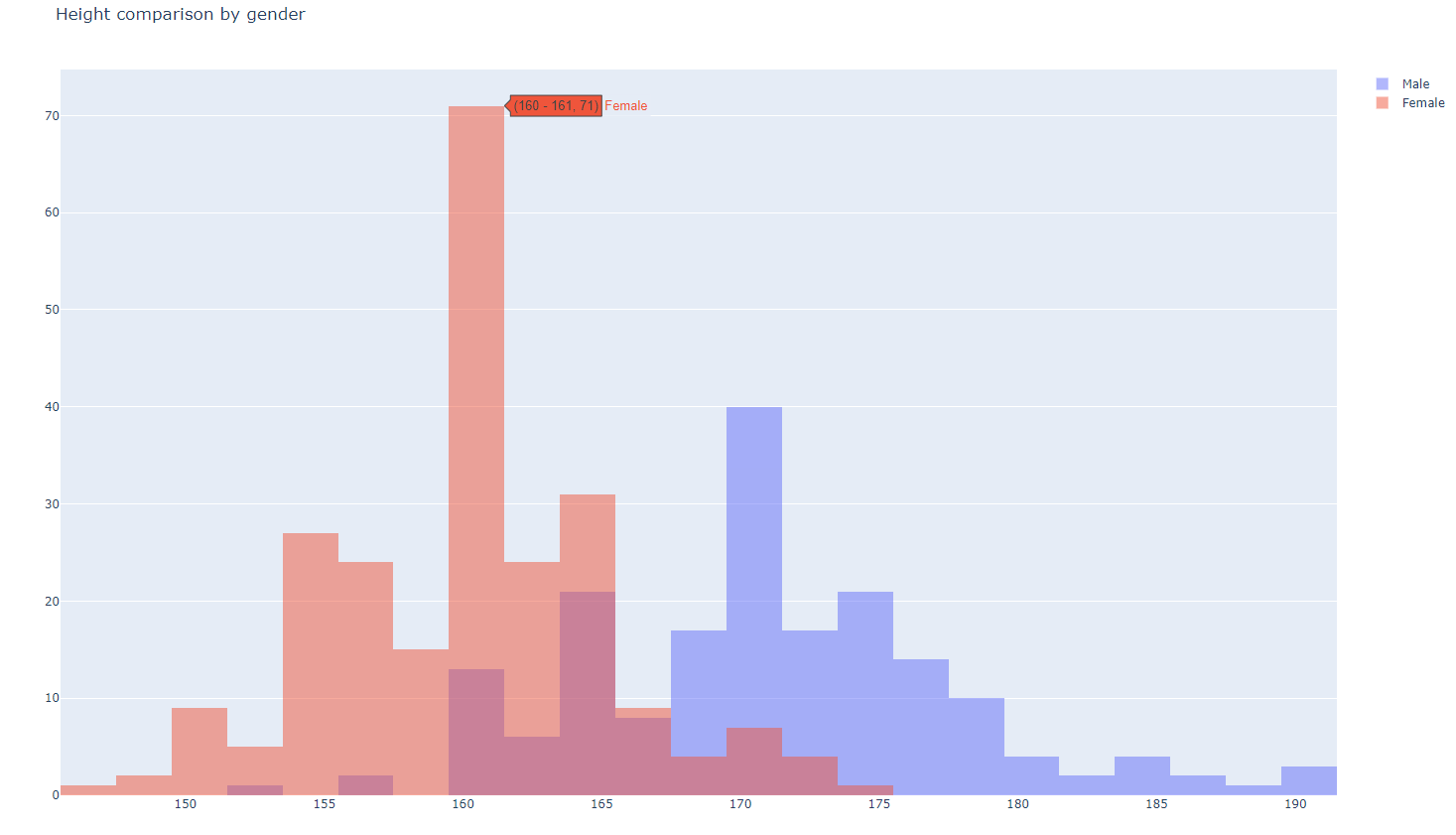

- hist4.py
#######
# This histogram compares heights by gender
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv(r'arrhythmia.csv')
data = [go.Histogram(
x=df[df['Sex']==0]['Height'],
opacity=0.5,
name='Male'
),
go.Histogram(
x=df[df['Sex']==1]['Height'],
opacity=0.5,
name='Female'
)]
layout = go.Layout(
barmode='overlay',
title="Height comparison by gender"
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='basic_histogram2.html')

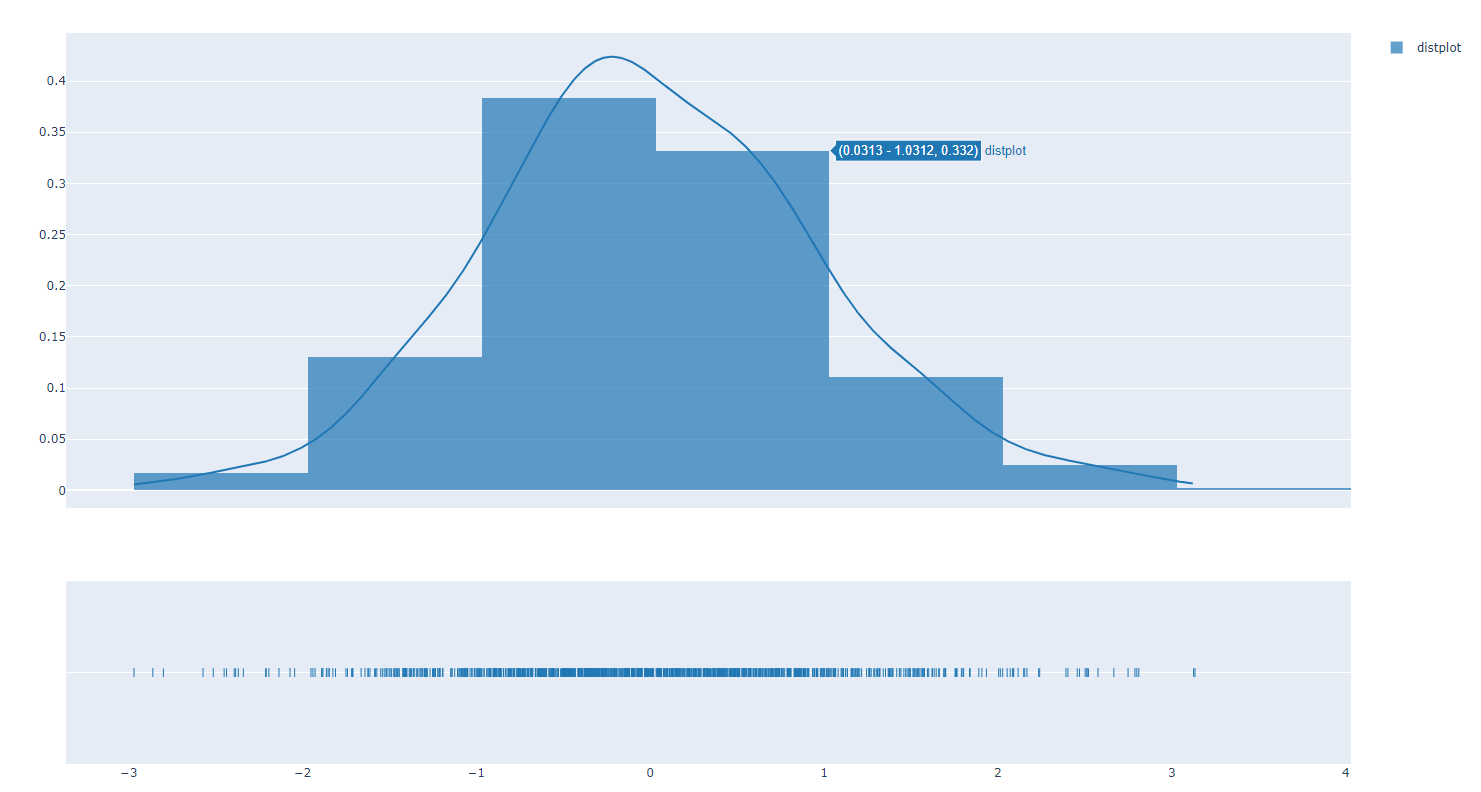

- dist1.py
#######
# This distplot uses plotly's Figure Factory
# module in place of Graph Objects
######
import plotly.offline as pyo
import plotly.figure_factory as ff
import numpy as np
x = np.random.randn(1000)
hist_data = [x] #list(x)
group_labels = ['distplot']
fig = ff.create_distplot(hist_data, group_labels)
pyo.plot(fig, filename='basic_distplot.html')

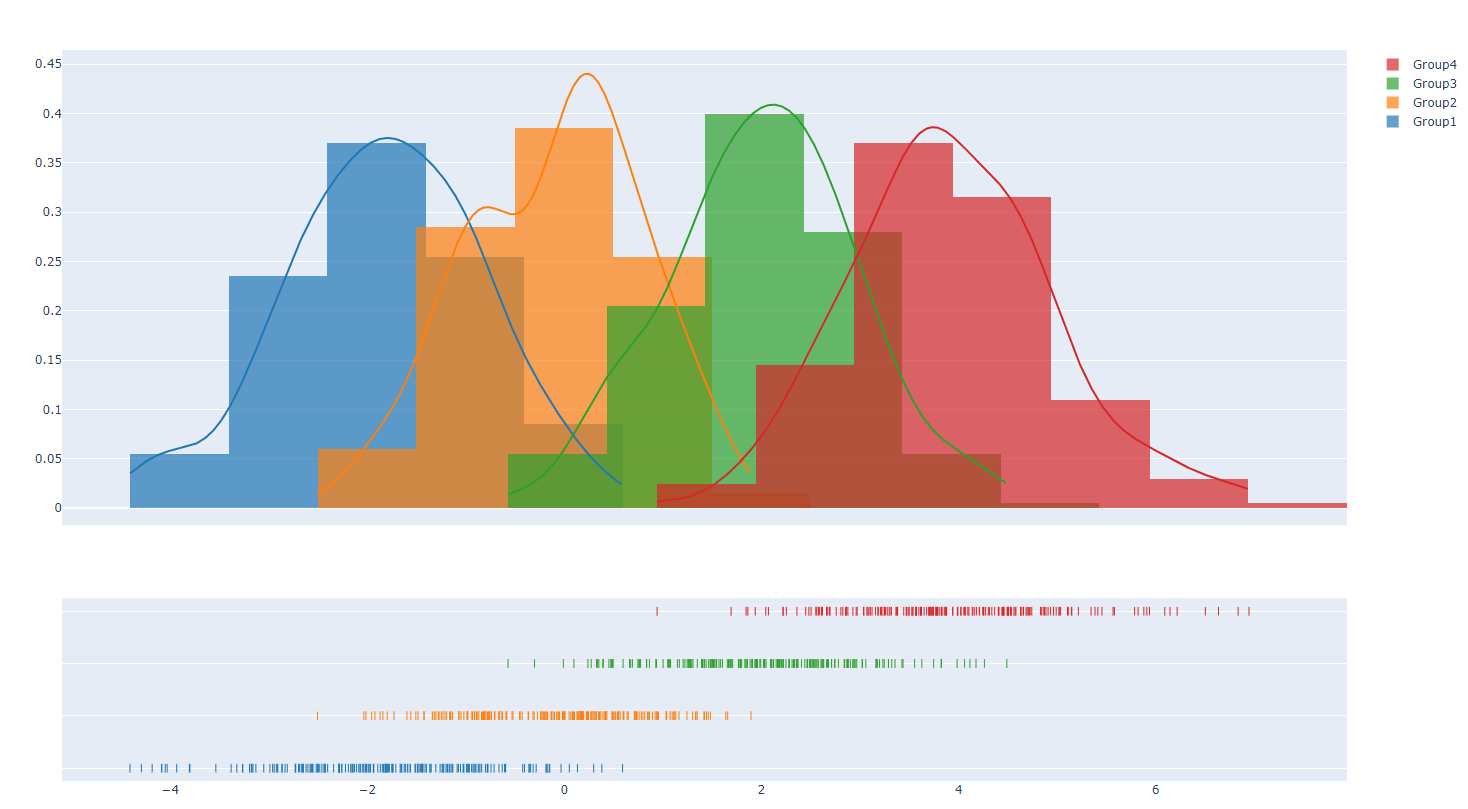

- dist2.py
#######
# This distplot demonstrates that random samples
# seldom fit a "normal" distribution.
######
import plotly.offline as pyo
import plotly.figure_factory as ff
import numpy as np
x1 = np.random.randn(200)-2
x2 = np.random.randn(200)
x3 = np.random.randn(200)+2
x4 = np.random.randn(200)+4
hist_data = [x1,x2,x3,x4]
group_labels = ['Group1','Group2','Group3','Group4']
fig = ff.create_distplot(hist_data, group_labels)
pyo.plot(fig, filename='multiset_distplot.html')

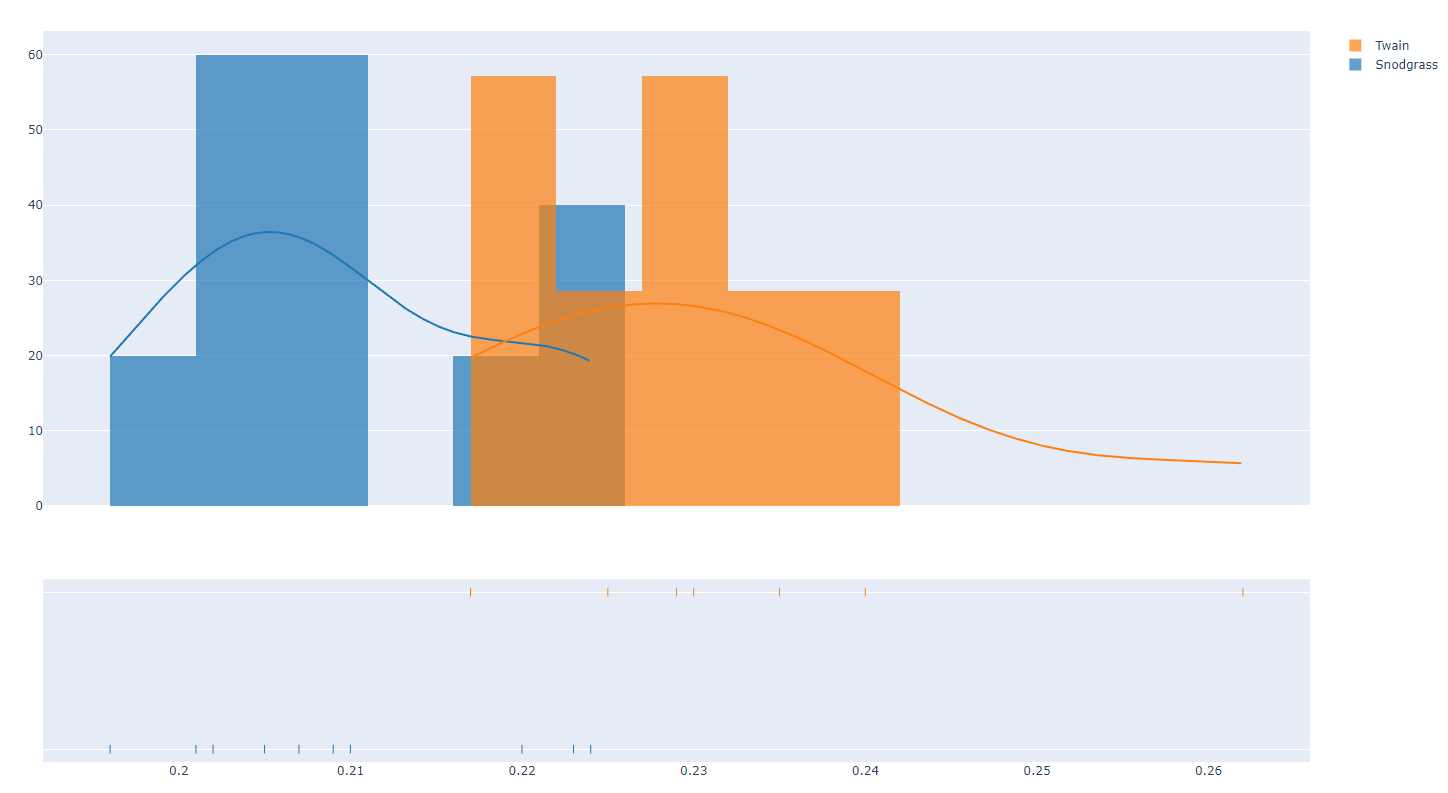

- dist3.py
#######
# This distplot looks back at the Mark Twain/
# Quintus Curtius Snodgrass data and tries
# to compare them.
######
import plotly.offline as pyo
import plotly.figure_factory as ff
snodgrass = [.209,.205,.196,.210,.202,.207,.224,.223,.220,.201]
twain = [.225,.262,.217,.240,.230,.229,.235,.217]
hist_data = [snodgrass,twain]
group_labels = ['Snodgrass','Twain']
fig = ff.create_distplot(hist_data, group_labels, bin_size=[.005,.005])
pyo.plot(fig, filename='SnodgrassTwainDistplot.html')
- heat1.py
#######

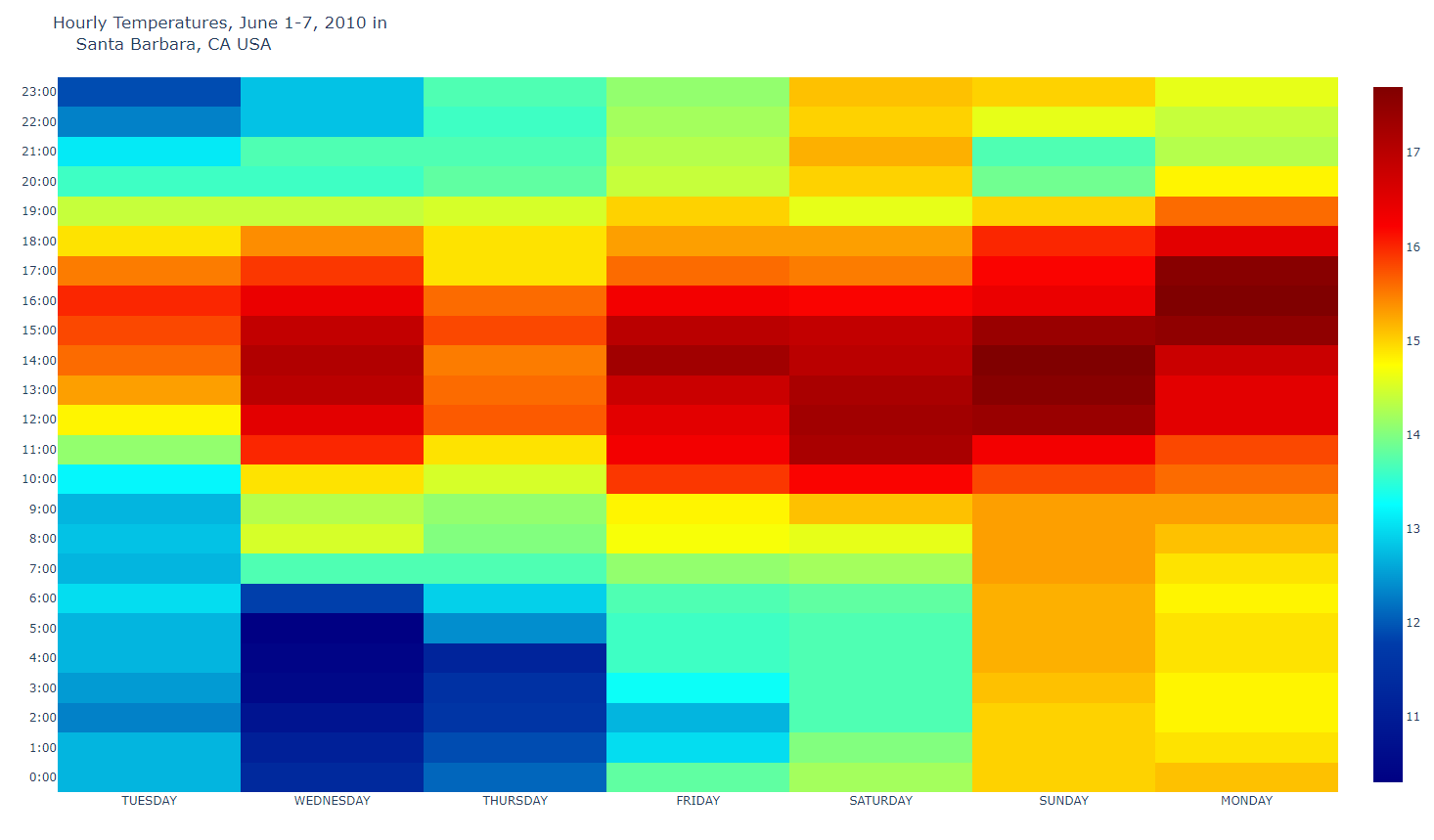

# Heatmap of temperatures for Santa Barbara, California
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv(r'2010SantaBarbaraCA.csv')
data = [go.Heatmap(
x=df['DAY'],
y=df['LST_TIME'],
z=df['T_HR_AVG'],
colorscale='Jet'
)]
layout = go.Layout(
title='Hourly Temperatures, June 1-7, 2010 in<br>\
Santa Barbara, CA USA'
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='Santa_Barbara.html')
heat map : 열지도, 두 값의 상관의 정도
- heat2.py
#######

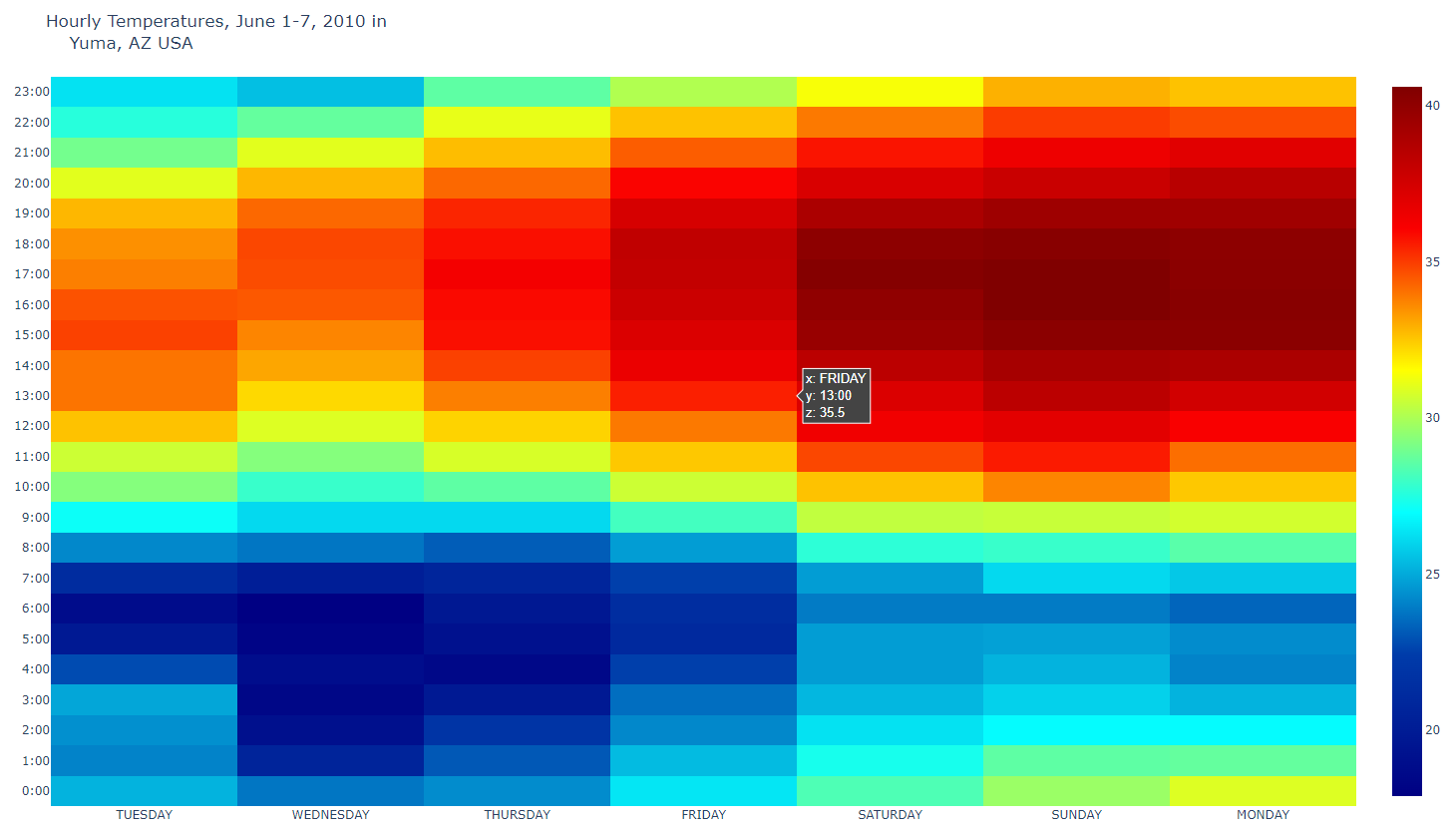

# Heatmap of temperatures for Yuma, Arizona
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv(r'2010YumaAZ.csv')
data = [go.Heatmap(
x=df['DAY'],
y=df['LST_TIME'],
z=df['T_HR_AVG'],
colorscale='Jet'
)]
layout = go.Layout(
title='Hourly Temperatures, June 1-7, 2010 in<br>\
Yuma, AZ USA'
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='Yuma.html')
- heat3.py
#######

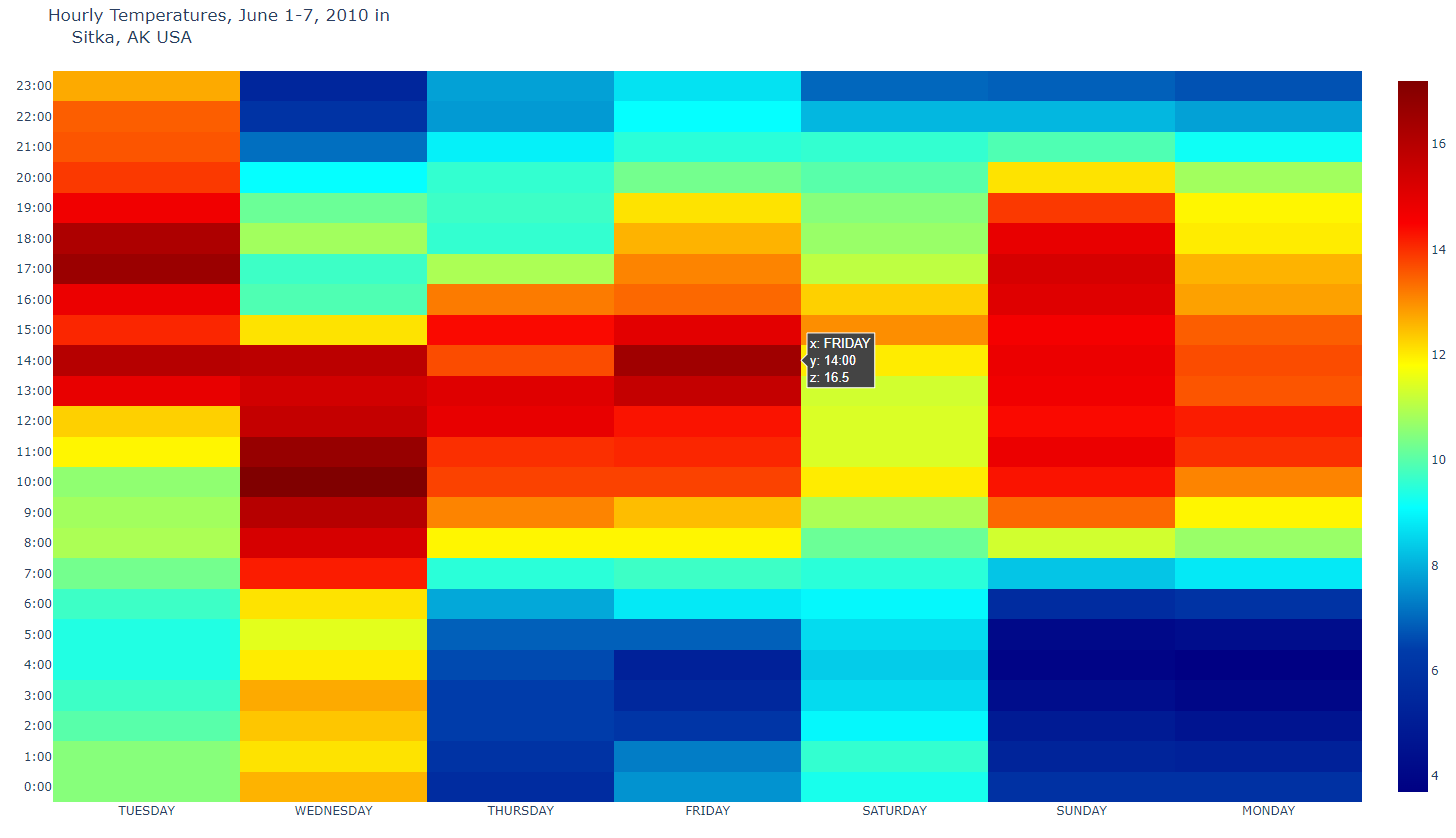

# Heatmap of temperatures for Sitka, Alaska
######
import plotly.offline as pyo
import plotly.graph_objs as go
import pandas as pd
df = pd.read_csv('2010SitkaAK.csv')
data = [go.Heatmap(
x=df['DAY'],
y=df['LST_TIME'],
z=df['T_HR_AVG'],
colorscale='Jet'
)]
layout = go.Layout(
title='Hourly Temperatures, June 1-7, 2010 in<br>\
Sitka, AK USA'
)
fig = go.Figure(data=data, layout=layout)
pyo.plot(fig, filename='Sitka.html')
- heat4.py
#######
# Side-by-side heatmaps for Sitka, Alaska,
# Santa Barbara, California and Yuma, Arizona
# using a shared temperature scale.
######
import plotly.offline as pyo
import plotly.graph_objs as go
from plotly import tools
import pandas as pd
df1 = pd.read_csv(r'2010SitkaAK.csv')
df2 = pd.read_csv(r'2010SantaBarbaraCA.csv')
df3 = pd.read_csv(r'2010YumaAZ.csv')
trace1 = go.Heatmap(
x=df1['DAY'],
y=df1['LST_TIME'],
z=df1['T_HR_AVG'],
colorscale='Jet',
zmin = 5, zmax = 40 # add max/min color values to make each plot consistent
)
trace2 = go.Heatmap(
x=df2['DAY'],
y=df2['LST_TIME'],
z=df2['T_HR_AVG'],
colorscale='Jet',
zmin = 5, zmax = 40
)
trace3 = go.Heatmap(
x=df3['DAY'],
y=df3['LST_TIME'],
z=df3['T_HR_AVG'],
colorscale='Jet',
zmin = 5, zmax = 40
)
fig = tools.make_subplots(rows=1, cols=3,
subplot_titles=('Sitka, AK','Santa Barbara, CA', 'Yuma, AZ'),
shared_yaxes = True, # this makes the hours appear only on the left
)
fig.append_trace(trace1, 1, 1)
fig.append_trace(trace2, 1, 2)
fig.append_trace(trace3, 1, 3)
fig['layout'].update( # access the layout directly!
title='시간에 따른 온도, June 1-7, 2010'
)
pyo.plot(fig, filename='AllThree.html')
온도 차를 한 눈에 확인할 수 있음
dashboard

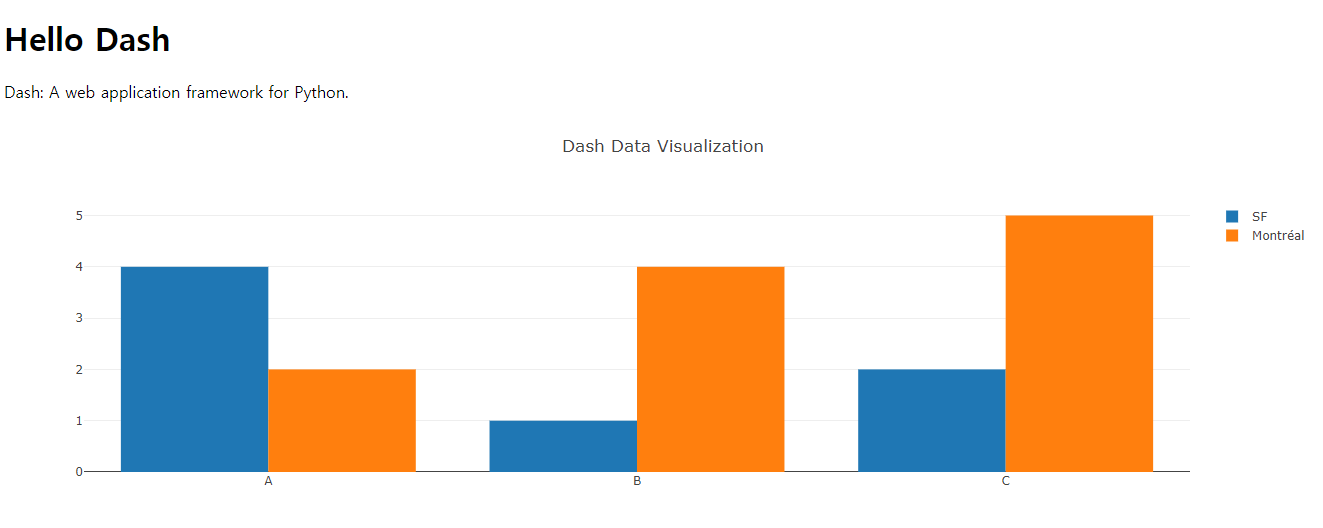

- layout1.py
# -*- coding: utf-8 -*-
import dash
import dash_core_components as dcc
import dash_html_components as html
app = dash.Dash()
app.layout = html.Div(children=[
html.H1(children='Hello Dash'),
html.Div(children='Dash: A web application framework for Python.'),
dcc.Graph(
id='example-graph',
figure={
'data': [
{'x': ["A", "B", "C"], 'y': [4, 1, 2], 'type': 'bar', 'name': 'SF'},
{'x': ["A", "B", "C"], 'y': [2, 4, 5], 'type': 'bar', 'name': u'Montréal'},
],
'layout': {
'title': 'Dash Data Visualization'
}
}
)
])
if __name__ == '__main__':
app.run_server()
